Microsoft Surface Go LTE GPS for Ham Radio

November 2, 2023 Julian OH8STN Data comms, Digital Communications, Education, Ham Radio, JS8Call, Microsoft Surface, oh8stn, Raspberry Pi, WinLink 2

Want to access and share the internal GPS on the Surface Go LTE with other apps. Well, here you go.

Hello Operators.
Microsoft has done an incredibly shortsided job in its GPS implementation on the Surface Go LTE. I´ll avoid annoying myself again and just say it this way. “Microsoft made it more difficult than it needs to be to access and share the GPS data with other apps”.

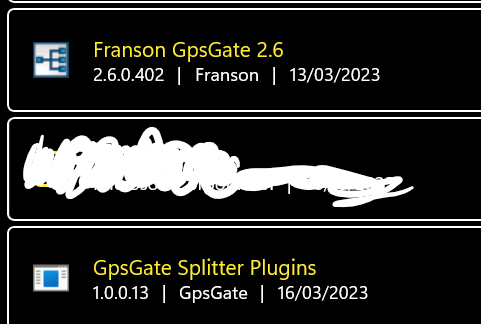

To save your hair line from the “Wisdom” of Microsoft, there are two utilities we need to download. These utilities are called Franson GPSGate and GPS Splitter plugin.

The GPSGate utility may not actually be needed, as the Splitter is the tool required to get the location data from the GPS and create the virtual com port. I couldn´t get the splitter to work without GPSGate, so please start with reading the documentation. The only “dependencies” I ran into were solved with installing the Fransman GPSGate utility.

The Splitter is found here: https://gpsgate.com/gpsgate-splitter

Fransman The GPSGate utility can be found here: https://gpsgate.com/gpsgate-server

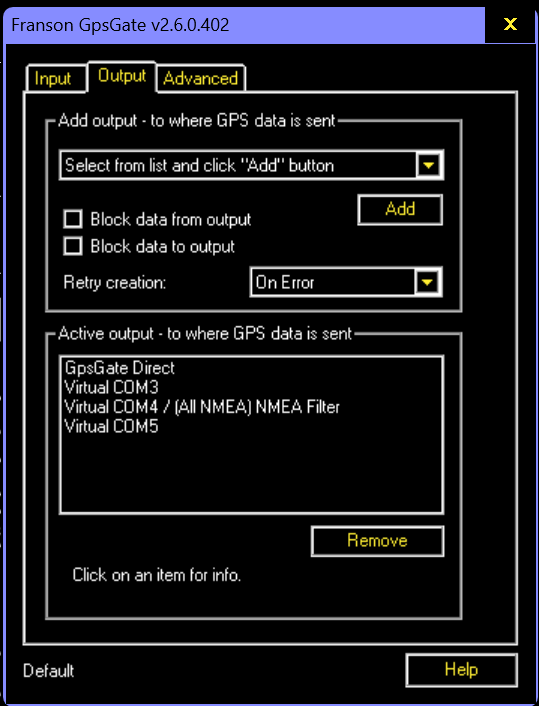

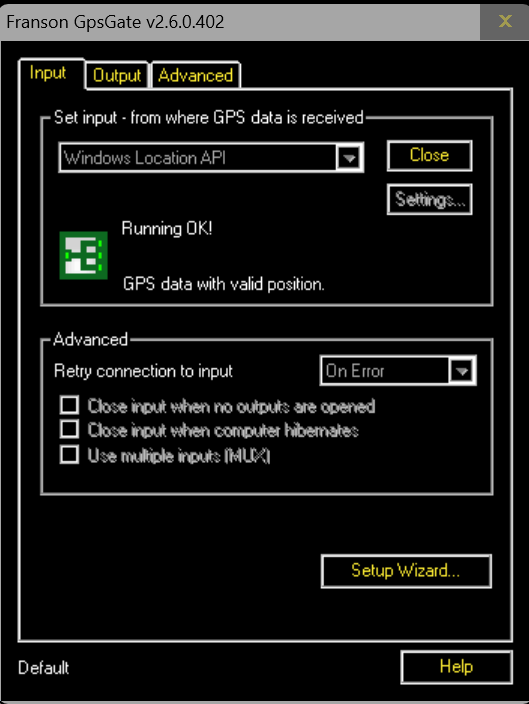

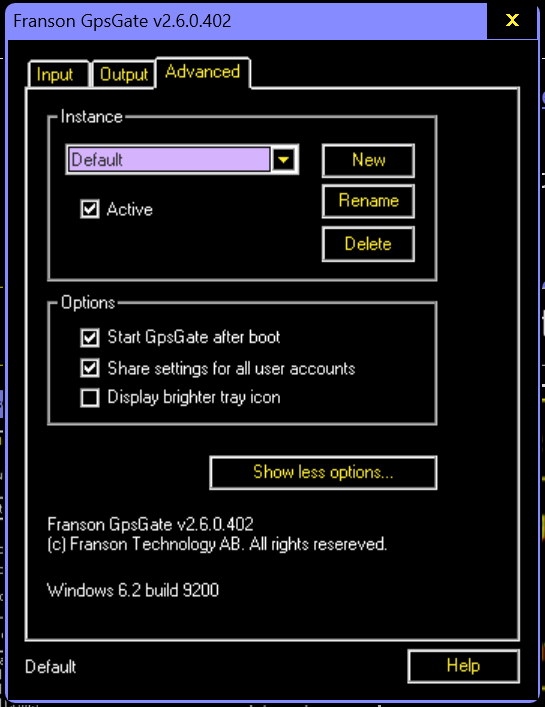

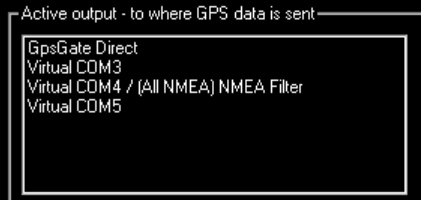

Combined these utilities create a GUI for the virtual comport configuration, and what type of output you want for your desired application. In the following images, you can see I have configured mine to take data from the Windows Location API, outputting that data in NMEA sentences on com 4. Though you can’t see com 4 in the device manager, I assure you it is there! The utility is also configured to start up automatically at boot. Once installed and configured, it is all very simple.

Sadly neither of these utilities are free any longer. When I downloaded the original utility, there was no charge for it. However, this has changed. The price is less than a junk food meal and seems worth it to me. There was the free version floating around the net someplace, and might not be too difficult to find. With that said, this is an incredible tool and its developer deserves to get paid!

Time sync for FT8 & JS8Call

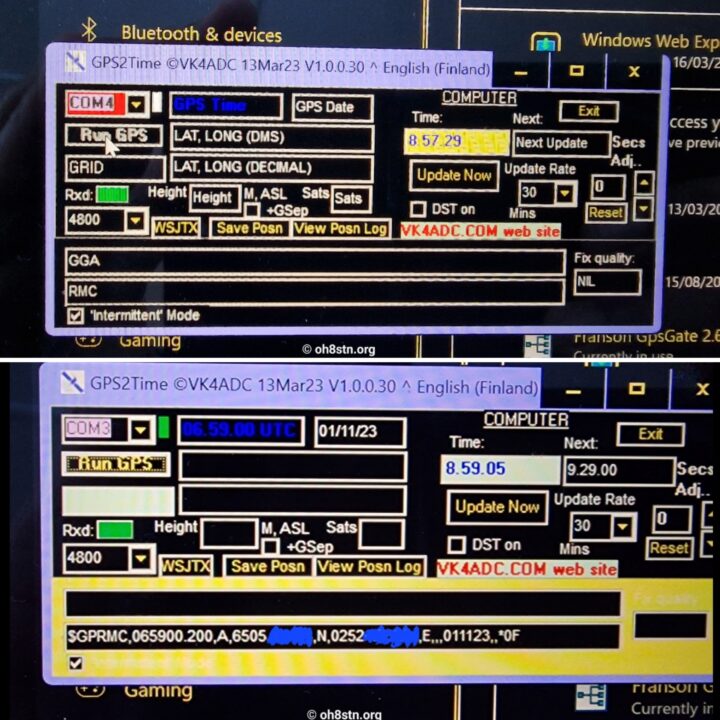

I also use the internal GPS to create a time sync for JS8Call. The GPSGate utility creates a virtual comport one can use as a physical port in GPSTime by VK4ADC. In the images below, the GPSTime a connects to my the Surface Go internal GPS over virtual com port 4. NMEA string can be seen in the lower image.

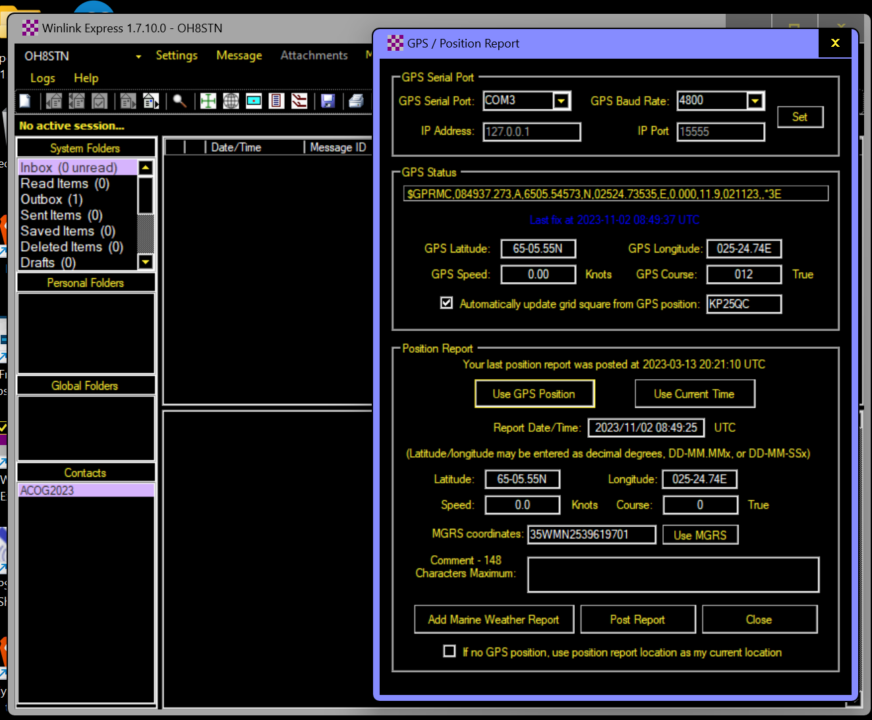

Winlink Express can also make use of the internal GPS in the Microsoft Surface. I often use this feature to send a position report to the Winlink system when APRS gateways are out of range.
The combination is very nice!

Who needs this utility?

Anyne with any radio other than the Icom IC-705. For those of us with an Icom IC-705, we would rarely if ever use the internal GPS on the Surface Go. The reason is, the 705 has an internal GPS already built-in. There is one scenario where we would use the internal GPS on the Surface, over the 705 GPS, I’ll explain.
The internal GPS on the IC-705 is available over the Micro USB port, but not when connected to your Surface Go wirelessly. The latter part is a bummer, preventing the wireless use of the IC-705 GPS for data communications. Although the internal GPS on the 705 remains a useful feature, not being available over Bluetooth was a painful oversight from the Icom dev team.

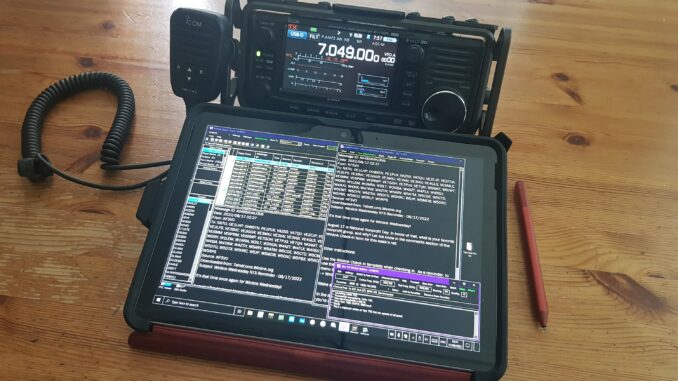

For those of us trying to reduce the “wire mess”, making use of the Surface Go internal GPS is also attractive. With a single USC-C port on the Surface, ports are a premium. Adding of USB hub to split the ports creates a fumbling mess, most of us would rather avoid. For simplified man-portable data communications, there is no better solution than the Microsoft Surface & Icom IC-705 combination!

What else to watch or read?

  • My most popular post on the Microsoft Surface can be found here. That post has more general information on specs, charging, setup, the surface pen, … I’ll eventually update that post, to reflect the GPS information in this post
  • The reason for the move to the Microsoft Surface was the limitations of the raspberry pi for field communications, and its poor reliability in and out of the ham shack. I simply wanted something requiring fewer wires, being easier to deploy and more robust than a Raspi. That is how I arrived at the Microsoft Surface.
  • Also in my arsenal of convertible tablets is the Lenovo Yoga. The Yoga is incredible, but more than likely out of the reach of most budget-minded Operators.

Charging the Surface Go

Just in case you’ve made it out to the field with your Surface Go, and now want to dabble into off-grid charging, here’s a video and some links for USB-C adapters compatible with the Microsoft Surface Go and other tablets adn laptops capable of charging with USB-C Power Delivery.

The Microsoft Surface needs a 15 volt, 45-watt USB-C PD adapter. I always suggest taking an adapter which has a minimum of 60-watts, 5-20 volt 3-5 amps on the USB-C PD (Power Delivery) port. Be careful when purchasing multi-port devices, as the total of all ports may equal 100-watts, rather than a single port providing the power and overhead we need.

Don’t feel any pressure to use the adapters linked here. As I said in the video, now you have enough information to choose your own adapter. That said, this is one of the 100-watt USB-C PD adapters I’ve tested.

This one was sent over from KC5DJT via Patreon. He says this model is a great way to get rid of the cigarette lighter socket used in the video. The voltage display is also a nice feature. I’ve been struggling to setup and nice battery monitor for a few weeks now, but might abandon that effort for something as simple as this.

I have not tested it, but will order one for sure.

Special thanks to KC5DJT for sending this over. https://amzn.to/3LMlRrS

100-watt USB-C PD adapter similar to the one seen in video: https://amzn.to/3SqdTIT

Some of you have asked for a link to the USB multimeter used in the video. This device measures and diplays power, amps, and voltage of the USB-C and USB-C PD device attached to it. It is essential kit for finding out the true load your USB-C devices are putting on your ham radio battery pack.
Here you go: USB-C Multimeter used in the video: https://amzn.to/3YE5jdF

  • Disclosure: The links above are affiliate links. This means that, at zero cost to you, I will earn a commission if you click through the link and finalize a purchase.

Hopefully, this information was helpful. If it was, let me know in the comments. If you found another way to achieve the same functionality, please share it with us in the comments.
