LiNK500 RPR TNC: The Ultimate Tool for Data Mode Ham Radio Operators

December 28, 2024 Julian OH8STN ALE, ALE Automatic Link Exchange, Android, APRS, Asynchronous Messaging, Audio Interfaces & Rig Control, Data comms, Disaster relief, Emergency Communications, Grid Down Communications, Ham Radio, HFAPRS, HFLINK, JS8Call, RBR APRS, Robust Packet Radip, WinLink 2

Introducing the LiNK500 RPR TNC: A Versatile Tool for Digital Amateur Radio

The LiNK500 RPR TNC is a highly versatile device designed to meet the evolving needs of data mode ham radio operators. Built on the foundation of the Teensy TNC, the LiNK500 expands its capabilities with advanced features such as RPR support, integrated GPS, APRS tracking, and cross-platform compatibility. This device serves as a comprehensive solution for modern digital communication while maintaining a straightforward, user-friendly design.

Hello Operators.
I thought is was about time to show you one of the projects I have on my bench. Many of you might remember the Teensy TNC used during the Arctic Circle 2023 expedition. Well, Oliver DL4KA has taken much of what we learned about the Teensy, and brought it up to date.

Key Features of the LiNK500

  1. Robust Packet Radio (RPR) Support:
    The LiNK500 is optimized for Robust Packet Radio (RPR), a mode that provides reliable data transmission over HF bands, even in weak signal conditions. This capability ensures dependable communication in challenging environments, making it an essential tool for emergency and field operations.
  2. Standalone APRS Tracking with Built-in GPS:
    With dedicated APRS support, the LiNK500 facilitates automatic position and status reporting. This is particularly useful for team or event coordination, and emergency response. The integrated GPS receiver allows the LiNK500 to operate independently as an APRS tracker, providing precise real-time location data. For enhanced signal performance, an external GPS antenna can be connected.
  3. Built-in Audio Interface:
    The LiNK500 eliminates the need for an external audio interface. Its internal audio processing supports a variety of digital modes, including FT8, JS8Call, VARA HF/FM, and more, simplifying setup for operators.
  4. APRS Tracker:
    With dedicated APRS support, the LiNK500 facilitates automatic position and status reporting. This is particularly useful for event coordination, emergency response, and situational awareness.
  5. Bluetooth Module for Wireless Operation:
    Equipped with Bluetooth, the LiNK500 supports wireless connections to Android, iOS, Windows, macOS, and Linux devices, allowing flexibility in configuration and operation.
  6. CAT and Data Interfaces:
    The device simplifies radio control with its CAT interface and facilitates bidirectional analog data transfer to and from your transceiver.
  7. USB-C Interface with Internal USB Hub:
    A modern USB-C connection ensures efficient data transfer, while the internal USB hub adds an extra port for connecting a transceiver or other peripherals.

Applications and Tested Use Cases

The LiNK500 has been tested and proven to work with numerous applications across various platforms. Here’s a breakdown:

Android:

  • WoAD (Winlink on Android Devices): For email communication over HF.
  • APRSdroid: For position tracking and messaging.
  • FT8 on Android: For weak-signal digital communication.

iOS:

  • aprs.fi app: For APRS mapping and tracking.
  • RadioMail: For Winlink messaging.

Windows:

  • Winlink Express: For robust email communication over HF and VHF.
  • WSJT-X and JTDX: For FT8 and other weak-signal modes.
  • JS8Call: For long-distance messaging.
  • PinPoint APRS: For APRS mapping and messaging.

Linux and Raspberry Pi:

  • PAT Winlink: For lightweight Winlink operations.
  • JS8Call: For resilient digital messaging.
  • WSJT-X and JTDX: For FT8 and similar modes.

This broad compatibility ensures that the LiNK500 integrates smoothly into diverse operating environments, whether in the field or at home.

Use Cases in Amateur Radio

  • Emergency Communication:
    With RPR support and Winlink compatibility, the LiNK500 is ideal for email communication and critical messaging during emergencies or natural disasters.
  • Portable Operations:
    The LiNK500’s standalone APRS tracking and Bluetooth connectivity make it a lightweight, portable solution for field operations or event support.
  • Digital Mode Operations:
    Its built-in audio interface simplifies the use of digital modes such as FT8, JS8Call, and VARA, making it versatile for operators who experiment with various protocols.
  • Cross-Platform Integration:
    The device works seamlessly across multiple platforms, allowing users to choose their preferred operating system and software tools.

Supported Radios for the LiNK500 RPR TNC

The LiNK500 is compatible with a variety of transceivers from leading manufacturers. Below is a comprehensive list of supported radios:

  • Yaesu FT-817: A compact, all-mode portable transceiver suitable for various amateur radio applications.
  • Yaesu FT-818: An upgraded version of the FT-817, offering enhanced features for portable operations.
  • Yaesu FT-891: A high-performance HF transceiver designed for mobile and field use.
  • ICOM IC-705: A versatile, all-mode portable transceiver covering HF, VHF, and UHF bands.
  • ICOM IC-7200: A rugged HF transceiver popular for digital mode operations.
  • ICOM IC-7300: An innovative SDR transceiver with excellent performance for HF and 50 MHz.
  • Lab599 TX-500: A rugged, ultra-portable HF transceiver designed for outdoor and expedition use.
  • Xiegu G90, G106, and G5105: Compact HF transceivers that are lightweight and ideal for portable and QRP operations.

Available Cable Sets

DiY599 offers specific cable sets to ensure seamless integration with these transceivers:

Further Information

These cable sets are designed to facilitate easy and reliable connections between the LiNK500 and your transceiver. For detailed wiring instructions and compatibility information, refer to the LiNK500 User Manual or visit DiY599’s official website.

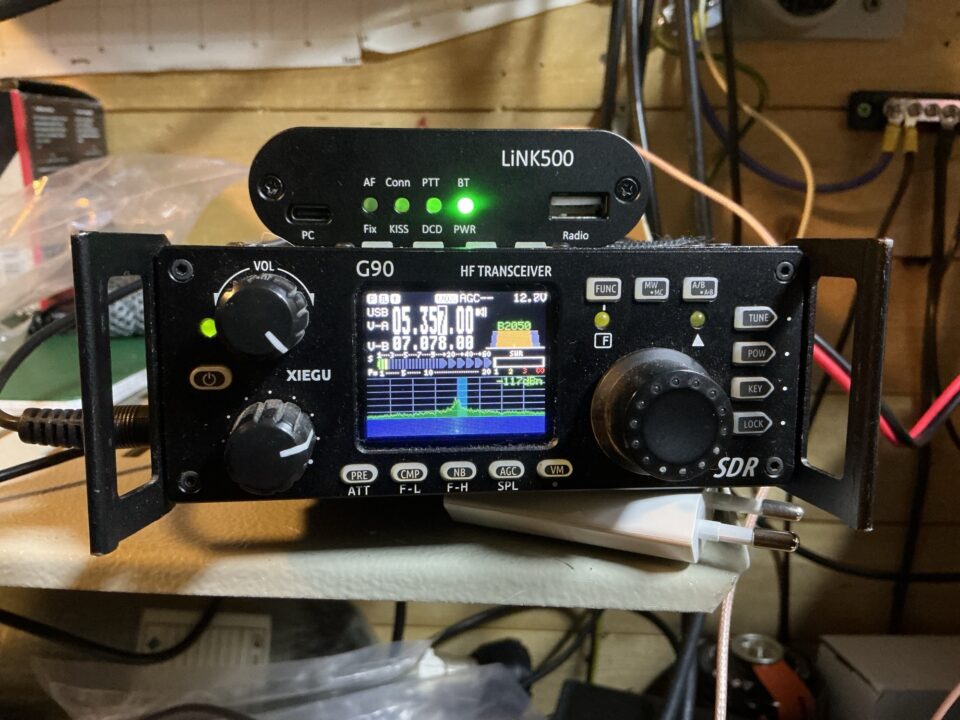

The LiNK500 TNC shown with the Xiegu G90

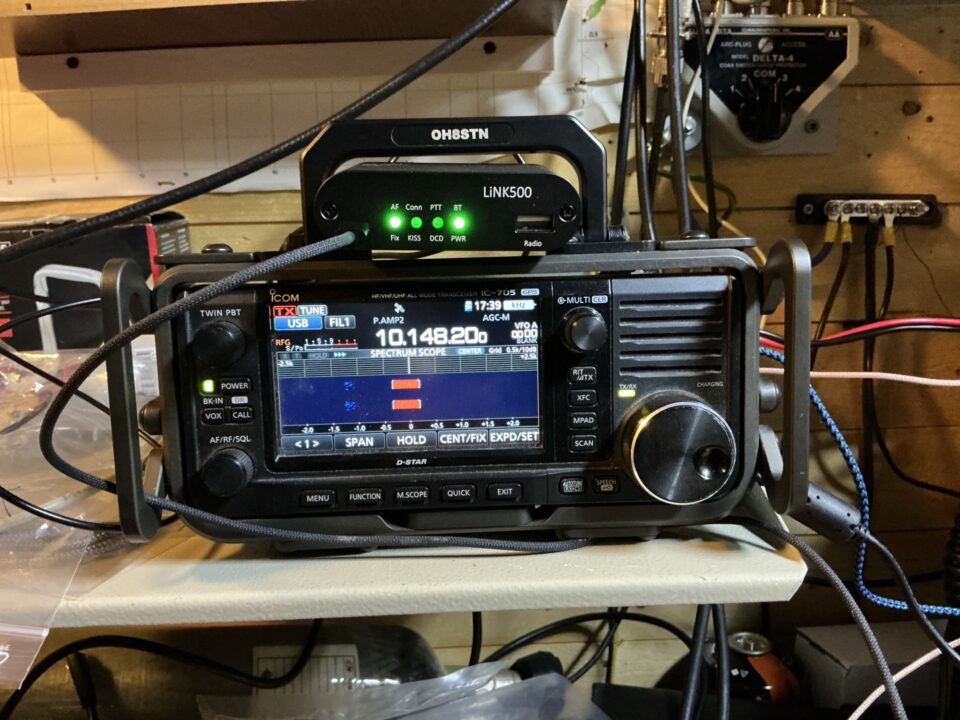

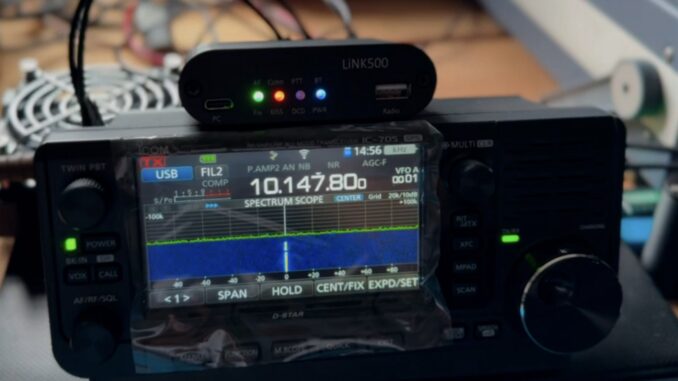

The LiNK500 TNC shown with the Icom IC-705

To Purchase the LiNK500 visit diy599.net. For technical details on features, setup, and operation, consult the LiNK500 User Manual.

Minimise Gear, Maximise Capability!

Conclusion

The LiNK500 RPR TNC represents a significant step forward in amateur radio digital communications. Although it was already incredible during Arctic Circle 2023, at that time, it created almost as many problems as it tried to solve. Today, with its combination of RPR, APRS tracking, integrated audio interface and support for many radios, it simplifies the multimode workflows of data mode operators while offering the flexibility to adapt to various needs and conditions in the field.
The LiNK500 is Highly recommended de Julian oh8stn.
